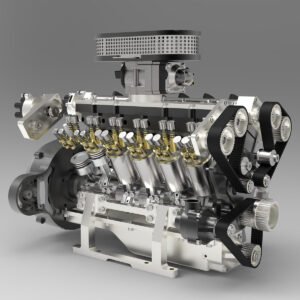

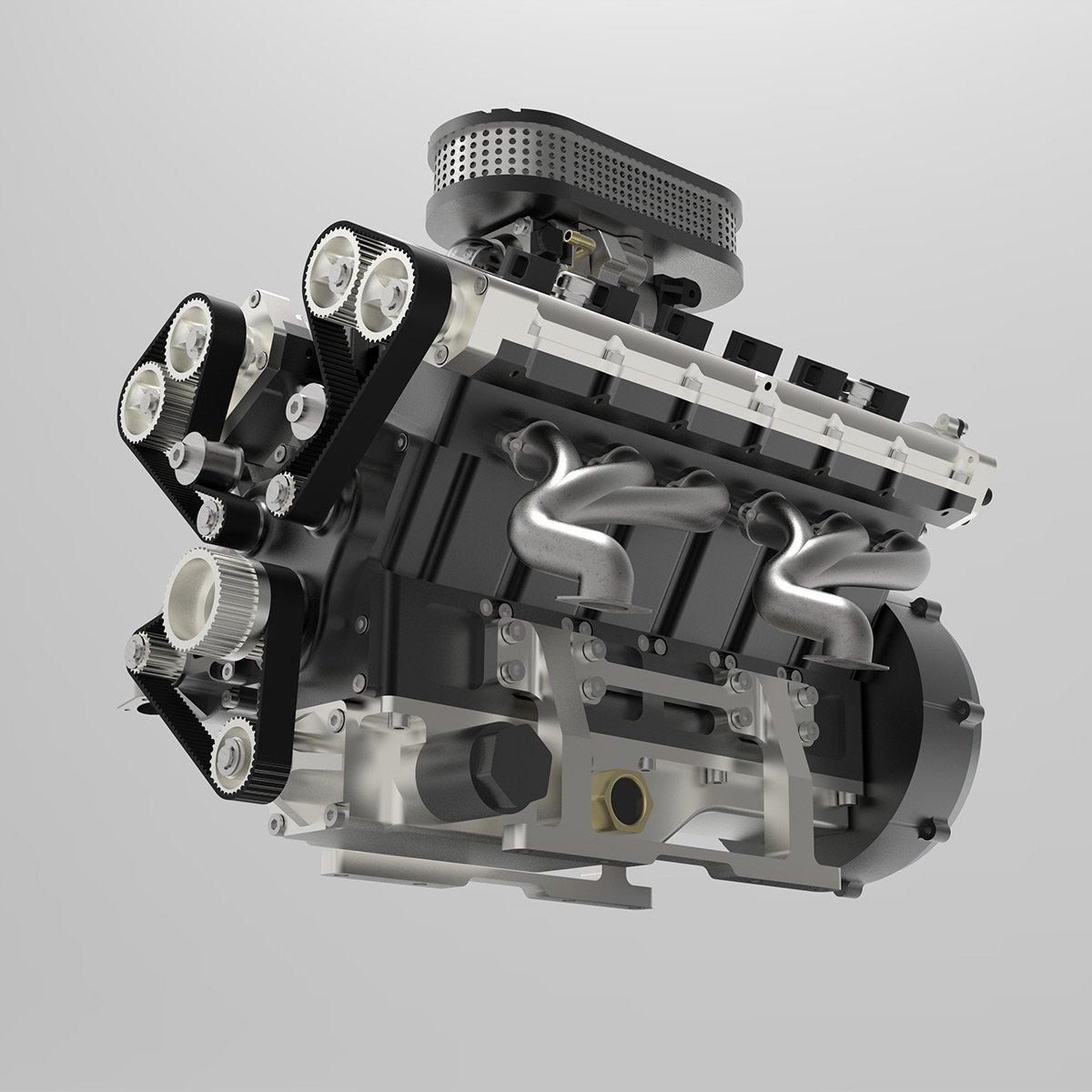

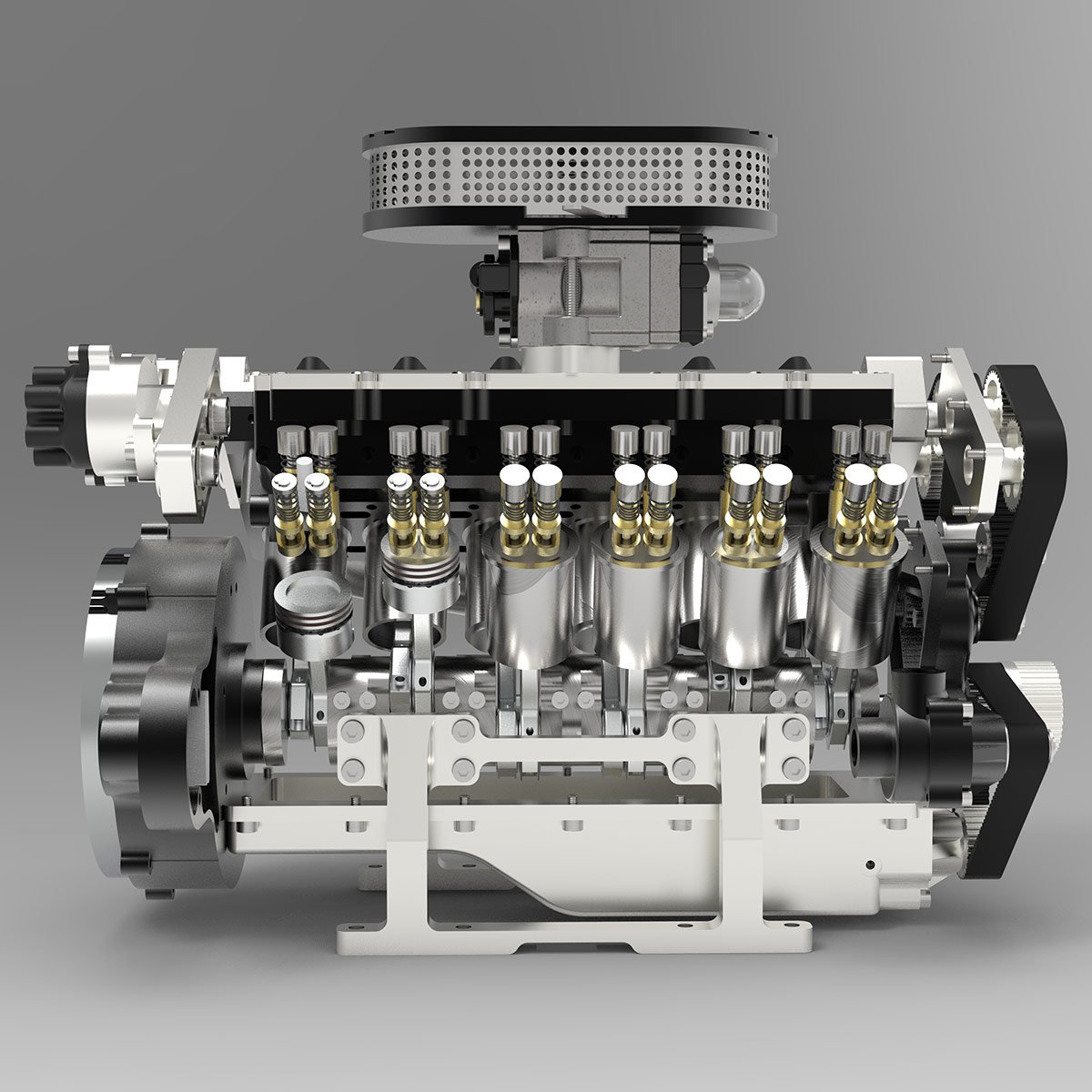

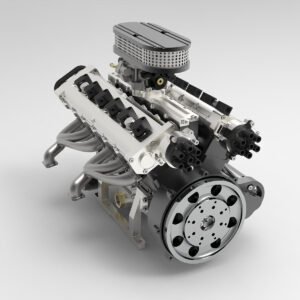

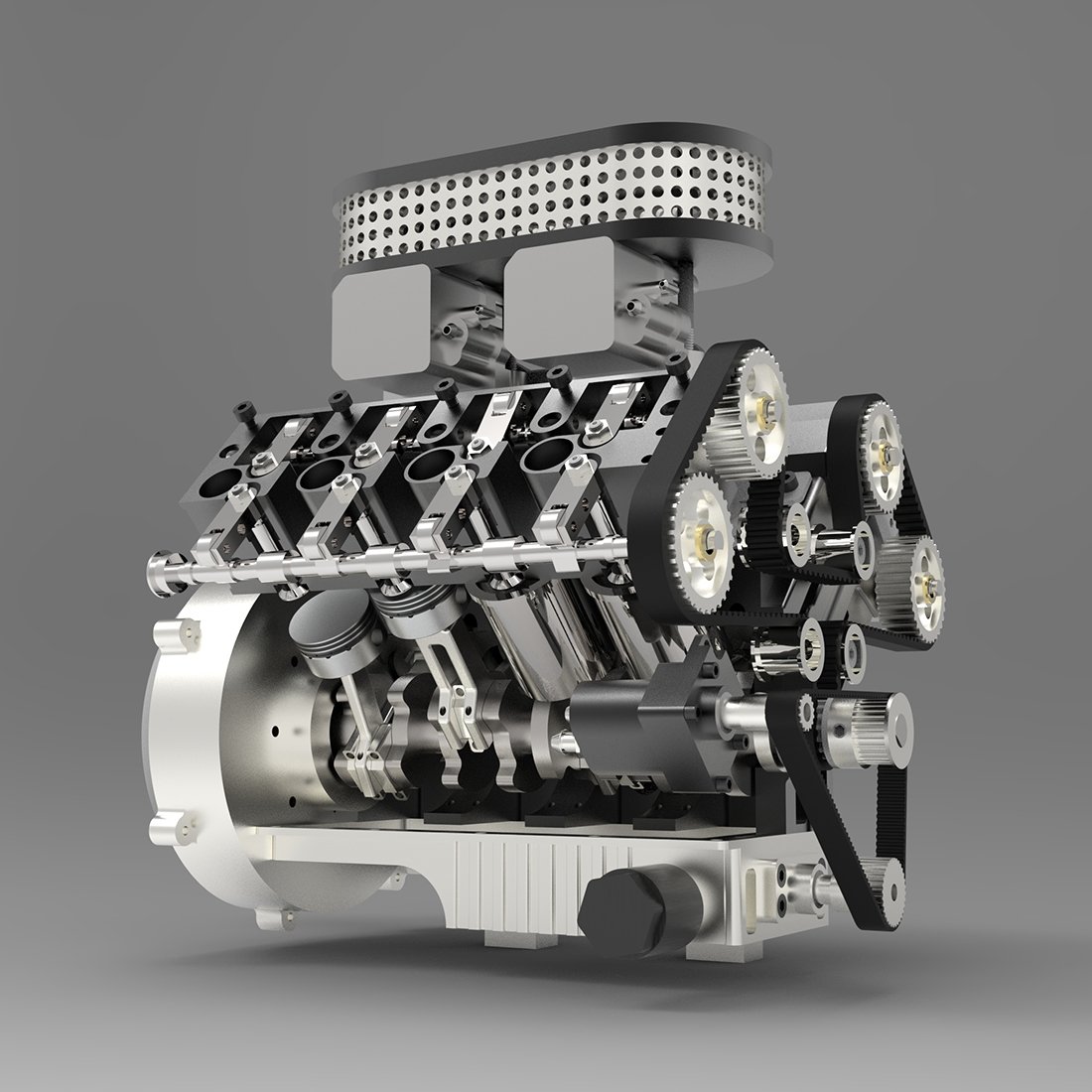

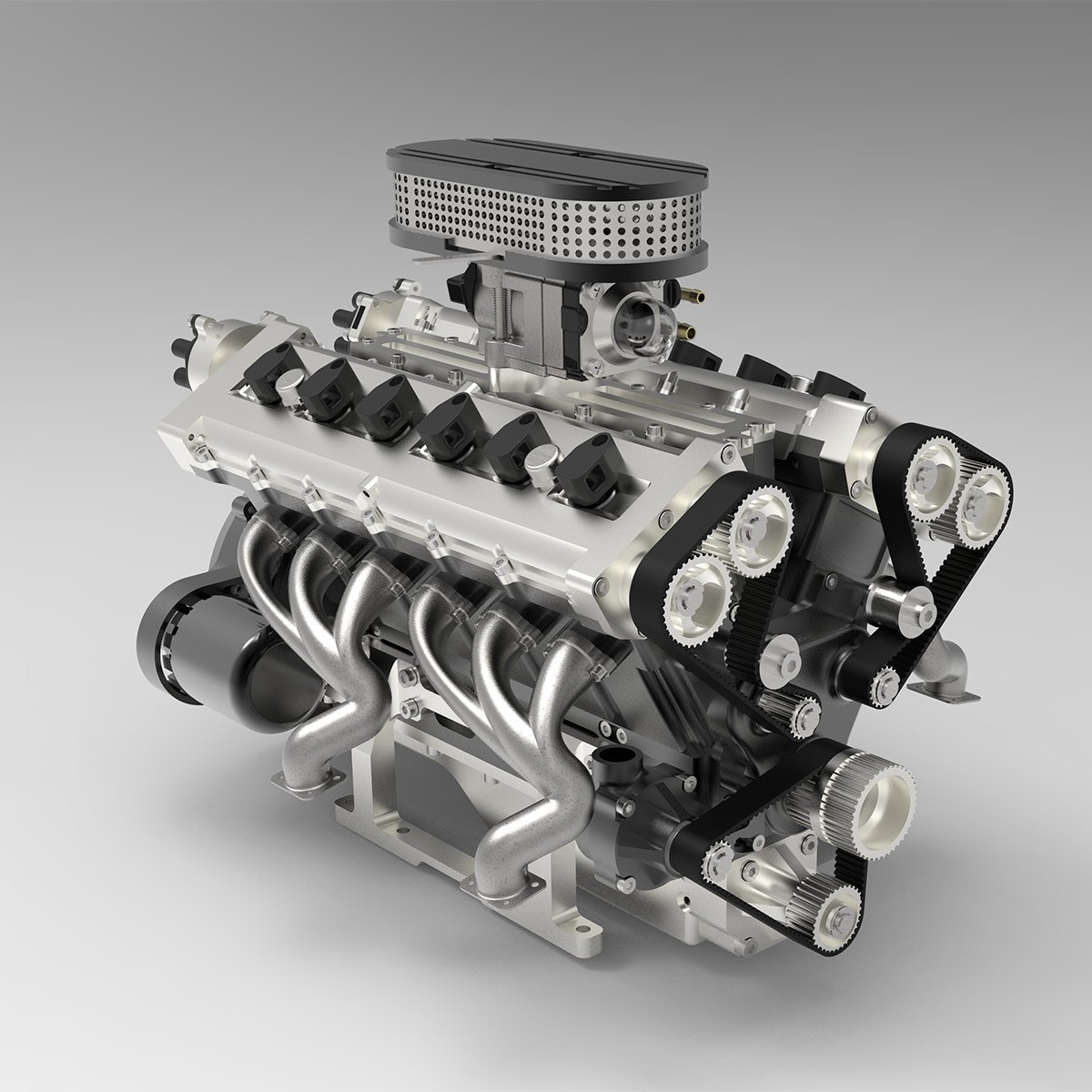

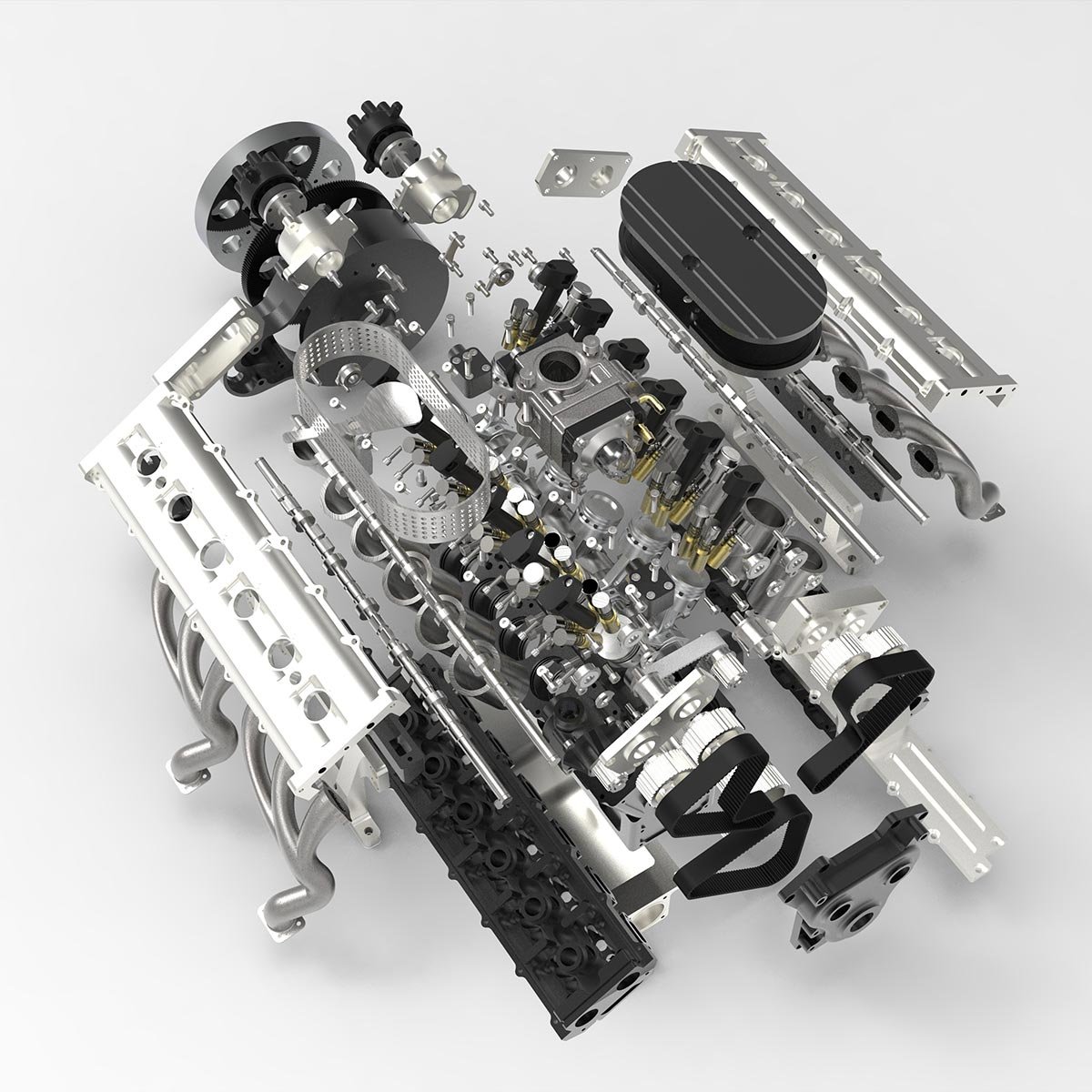

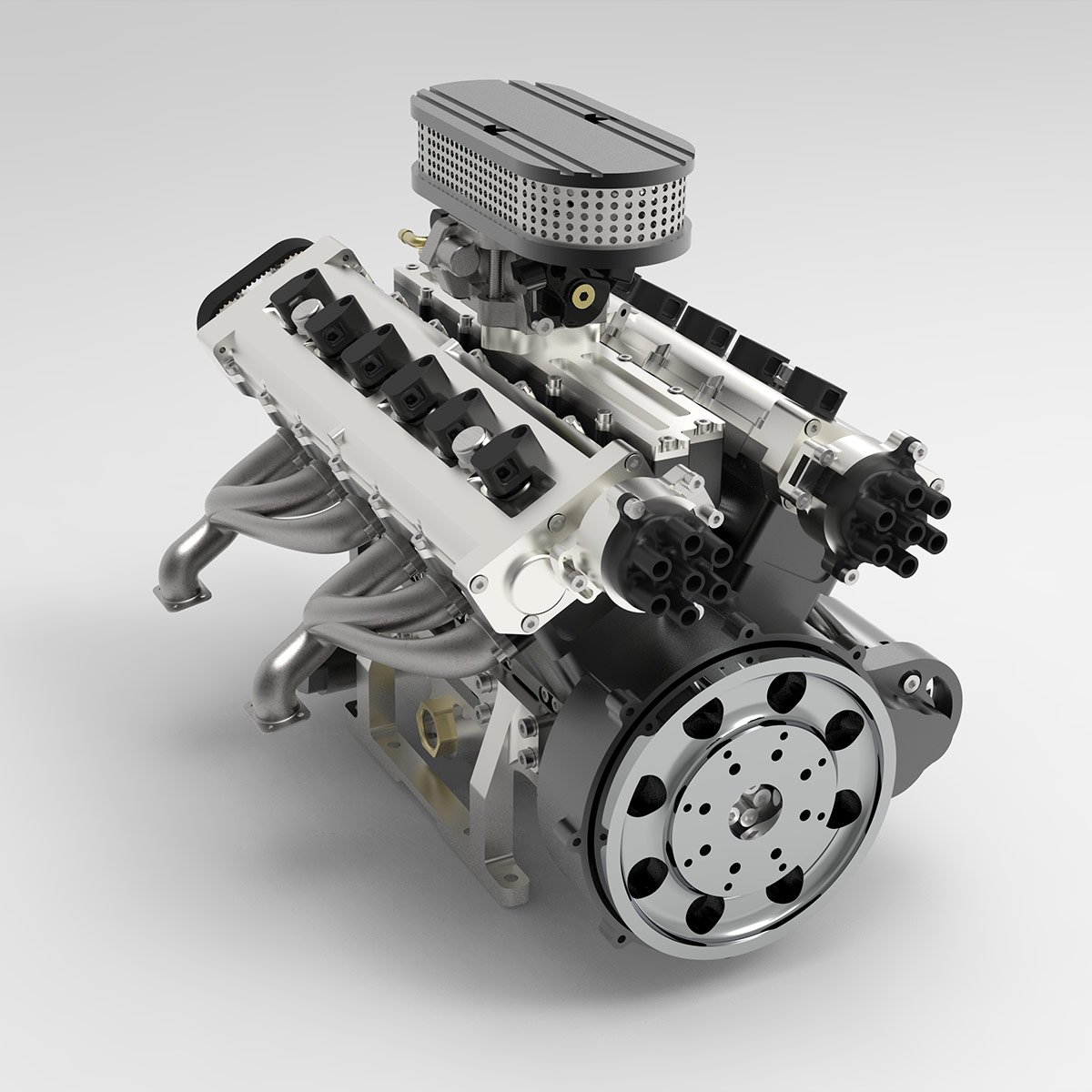

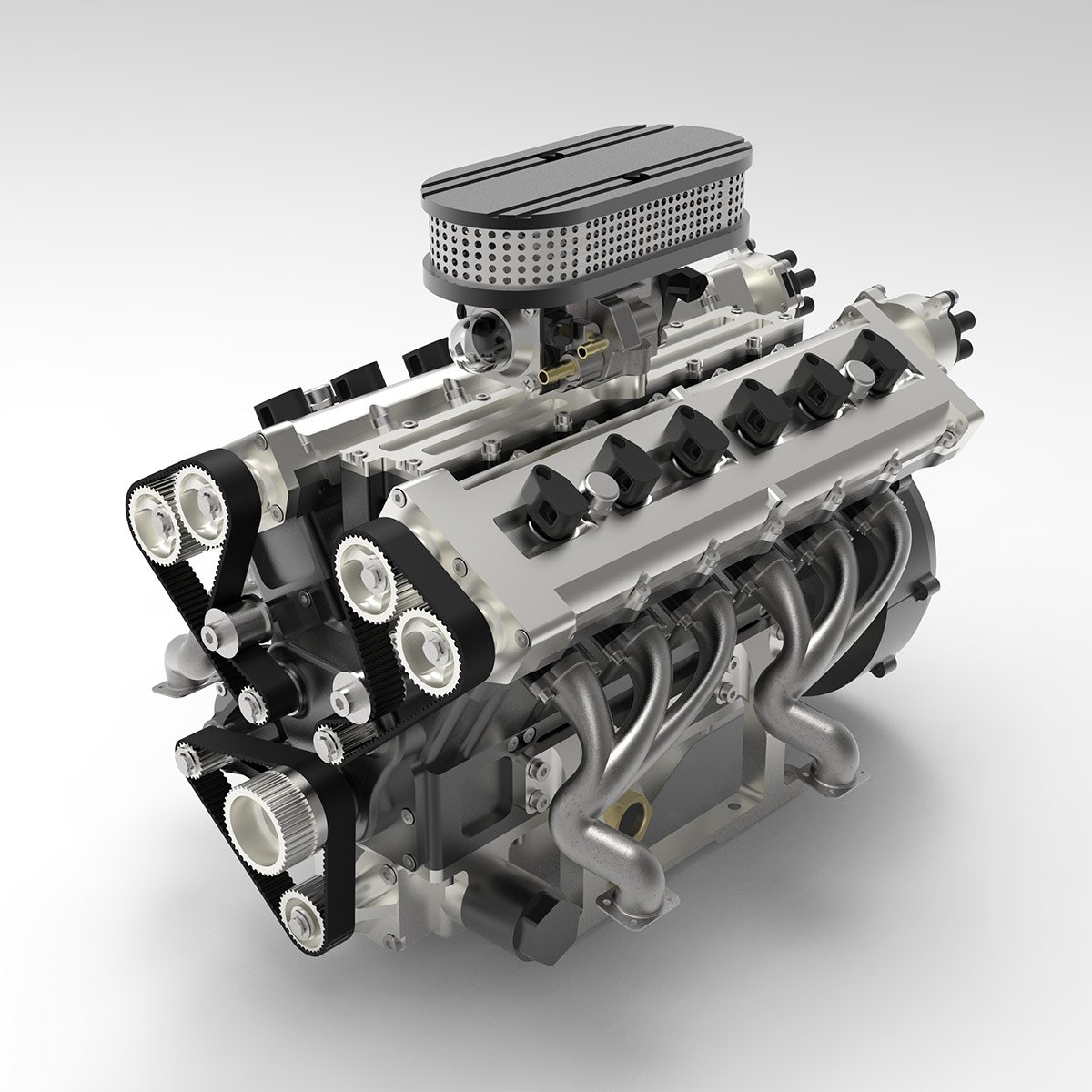

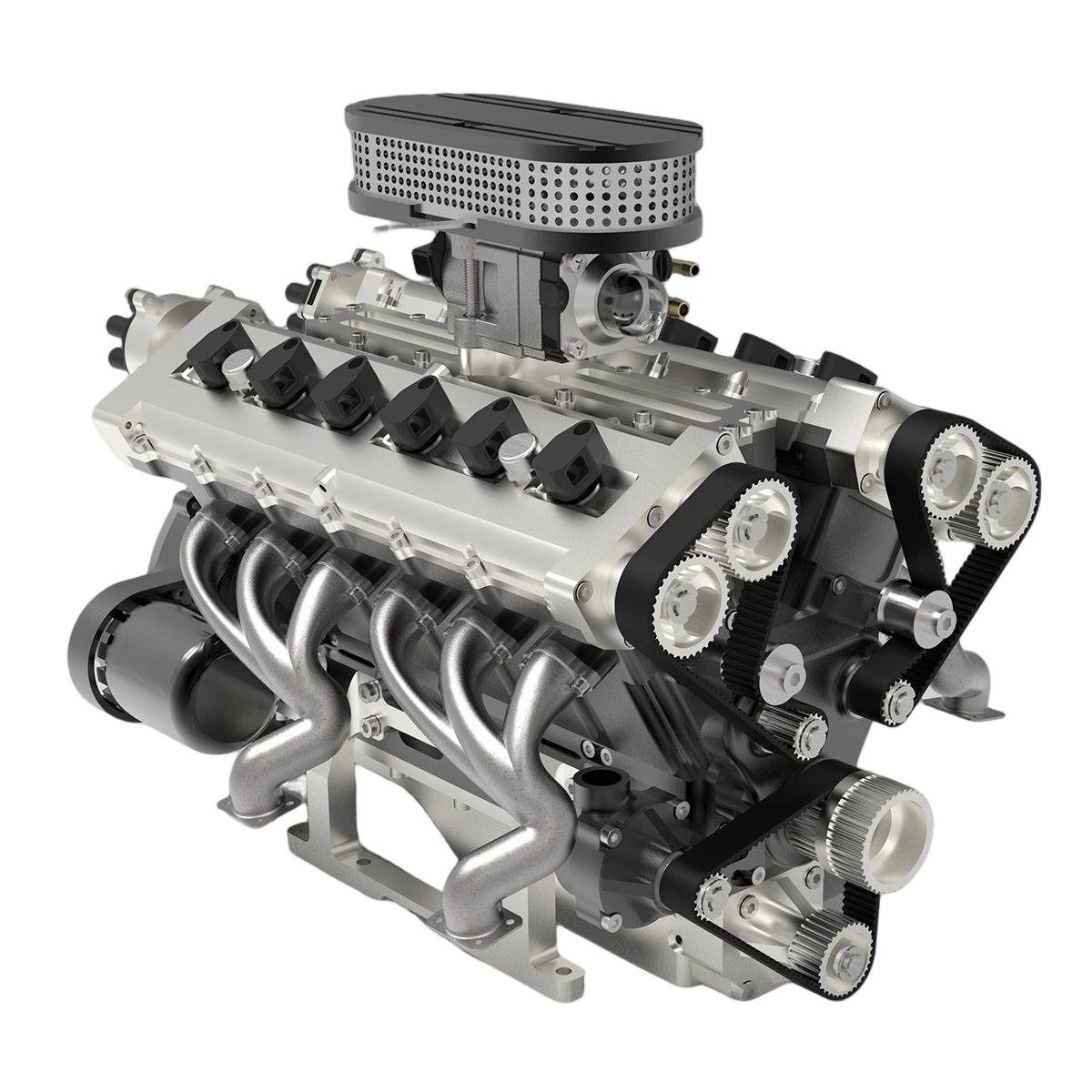

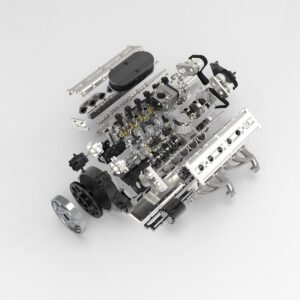

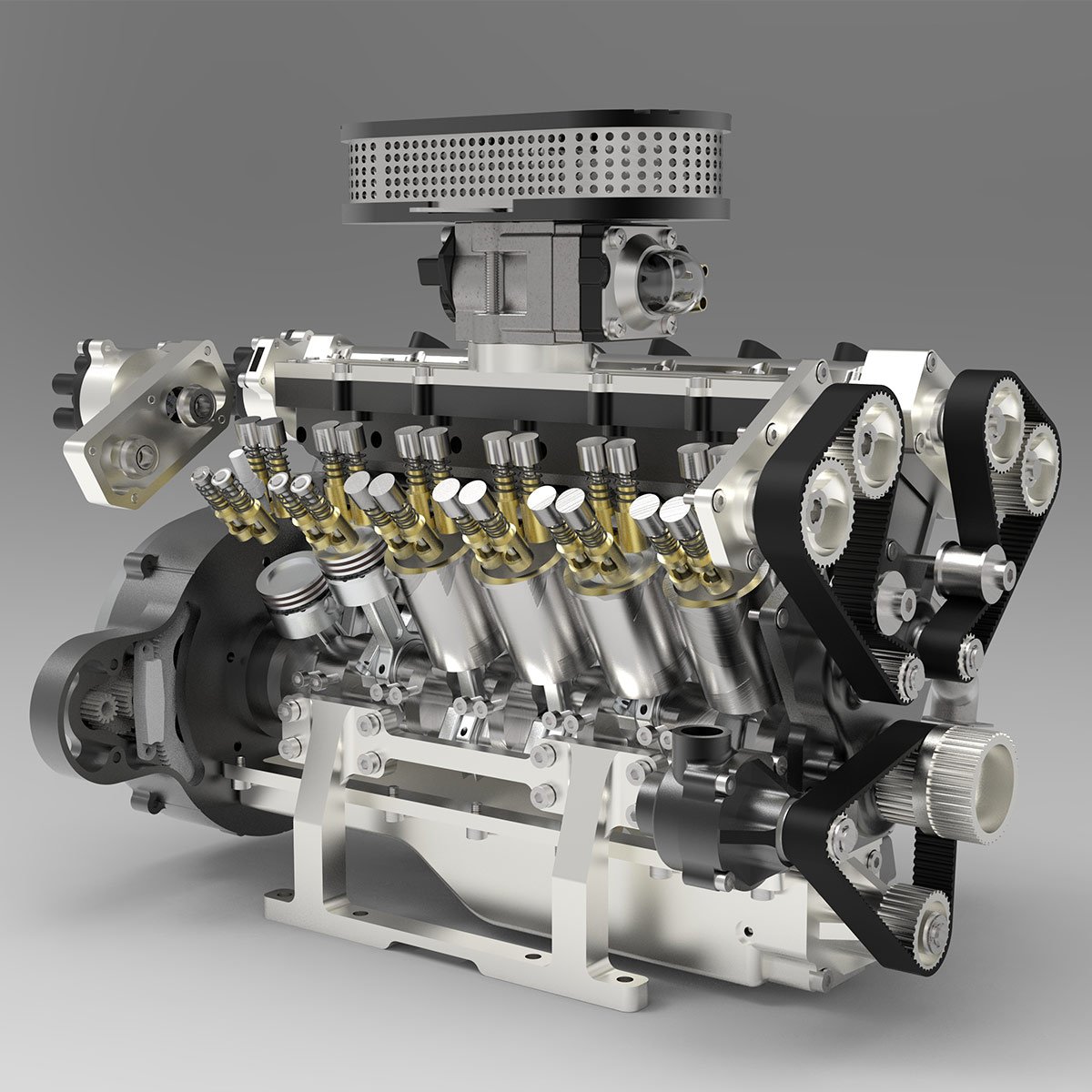

ENJOMOR GS-V12 DOHC 48-Valve V12 Engine Model
Model: GS-V12
Form: Preassembled Edition
Dimensions: 23.5*14*23cm
Weight: 8KG
Engine Type: Gasoline Internal Combustion Engine
Valve Mechanism Type: DOHC
Displacement: 72cc
Cylinder: V-shaped Twelve Cylinders
Stroke: Four-Stroke
Bore Diameter: 20mm
Stroke: 18mm
Valve: 48 Valves (4*12)
Output Shaft Diameter: 10mm
Maximum Speed: 10000rpm
Maximum Power: 3.8 kw
Cooling Method: Water Cooling
Lubrication Method: independent lubrication (oil pump lubrication);
Starting Method: electric start (including brushless starter motor);
Ignition Mode: cdi igniter and distributor control ignition;
Spark Plug Type: 3/16-40 inch thread spark plug;(33ED3439081)
Ignition Voltage: 10-12V
Starting Power supply: 24 batteries (not included);
Fuel: 95# and above gasoline
Engine Oil Model: 0-15w
Oil Volume: 70-80mL
